Product Details:
PITCH: MXL (0.080") 2.032MM |
||||
PULLEY CODE NO. |
NO. OF TEETH |
PITCH DIA. |
OUTSIDE DIA.(O.D) |
MAX BORE (I.D.) |
18MXL |
18 |
11.64 |
11.13 |
4 |
20MXL |
20 |
12.94 |
12.43 |
4 |
21MXL |
21 |
13.58 |
13.07 |
5 |
22MXL |
22 |
14.23 |
13.72 |
5 |
24MXL |
24 |
15.52 |
15.02 |
5 |
26MXL |
26 |
16.82 |
16.31 |
5 |
28MXL |
28 |
18.11 |
17.60 |
5 |
30MXL |
30 |
19.40 |
18.90 |
5 |
32MXL |
32 |
20.70 |
20.19 |
5 |
36MXL |
36 |
23.29 |
22.78 |
5 |
40MXL |
40 |
25.87 |
25.36 |
6 |
42MXL |
42 |
27.17 |
26.66 |
6 |
44MXL |
44 |
28.46 |
27.95 |
6 |
48MXL |
48 |
31.05 |
30.54 |
6 |
50MXL |
50 |
32.34 |
31.83 |
8 |
52MXL |
52 |
33.63 |
33.13 |
8 |
58MXL |
58 |
37.51 |
37.01 |
8 |
60MXL |
60 |
38.81 |
38.30 |
8 |
72MXL |
72 |
46.57 |
46.06 |
8 |
80MXL |
80 |
51.74 |
51.24 |
8 |
90MXL |
90 |
58.21 |
57.70 |
10 |
110MXL |
110 |
71.15 |
70.64 |
10 |
|
|
|
|
|
STANDARD BELT WIDTH FOR – MXL |
||||
BELT WIDTH CODE NO. |
INCHES |
MM |
||
MXL012 |
1/8" |
3.17 |
||
MXL018 |
3/16" |
4.76 |
||
MXL025 |
1/4" |
6.35 |
||
MXL037 |
3/8" |
9.52 |
||
|
PITCH: MXL (0.080") 2.032MM | ||||||

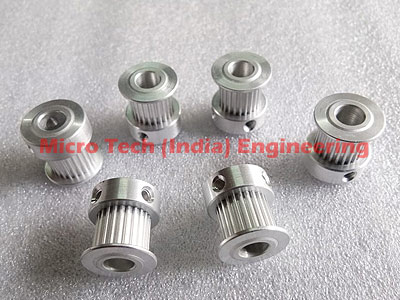

Manufacturers and Suppliers of Timimg Pully
